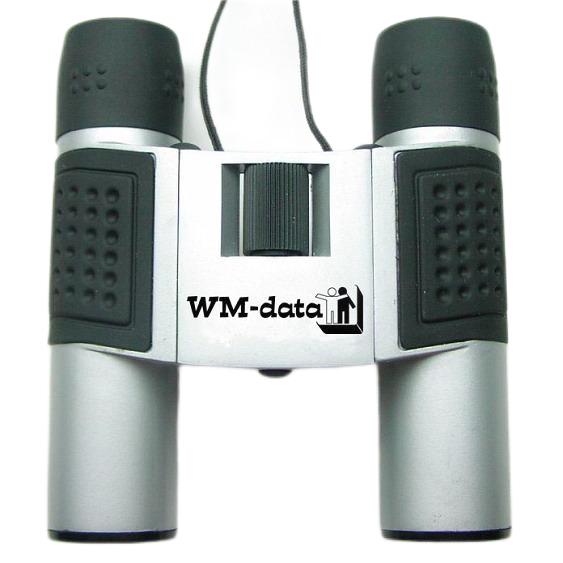

8x21/10x25
Detailed introduction
Order Code | 161007 | 161008 |
magnification | 8x | 10x |
Eye width(IPD) (mm) | 52-74 | 52-74 |
Field of View (ft@1000yds/m@1000M) | ||
Eye Relief (mm) | 12 | 12 |
Exit Pupil Diameter (mm) | 3.1 | 2.5 |
Resolution-On Axis(soa) | <=8" | <=8" |
Ocular Lens Diameter (mm) | 14 | 14 |
Objective Lens Diameter (mm) | 25 | 25 |
Close Focus Distance | 2.5m | 2.5m |
Coating Type | Fully -coated | Fully -coated |
Size | 98x102x45 | 112x105x45 |
Water/fog proof | no | no |
Size class | compact | compact |
Focus system | Center | Center |
Prism system | Roof(BK7) | Roof(BK7) |
Eyecups | fold-down | fold-down |
